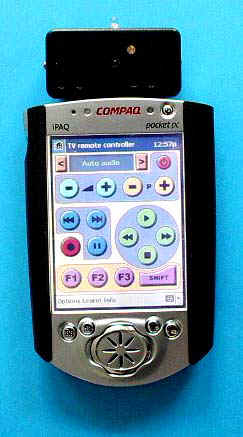

جهاز زيادة مدى الأشعة تحت الحمراء

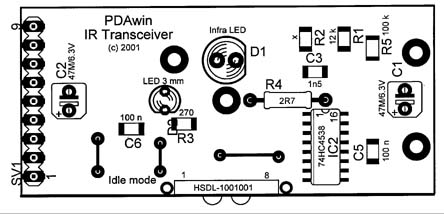

المكونات

Resistors :
R1 - 12 K SMD (size 1206)
R2 - not use if you have R1=12K and C3=1n5
R3 - 270 SMD (size 1206)
R4 - 2R7 (not SMD, size 0207)
R5 - 100 K SMD (size 1206)


Capacitors :
C1 - 47uF / 6.3V tantalum
C2 - 47uF / 6.3V tantalum
C3 - 1n5 SMD (size 1206)
C4 - not used
C5 - 100n SMD (size 1206)
C6 - 100n SMD (size 1206)


ICs :
IC1 - HSDL - 1001 (IR transceiver 115kBd 3V, SMD, HP - now Agilent Technologies)
IC2 - 74HC4538 (SMD)


Diodes :
D1 - HSDL - 4220 (IR LED 5mm 30°, HP - now Agilent Technologies)
D2 - red LED 3 mm


Connectors :
SV1 - 9 pin 2.54 mm, male (on board) + female (soldered on battery pack)


Box :
size 31 x 61 (WxL) mm

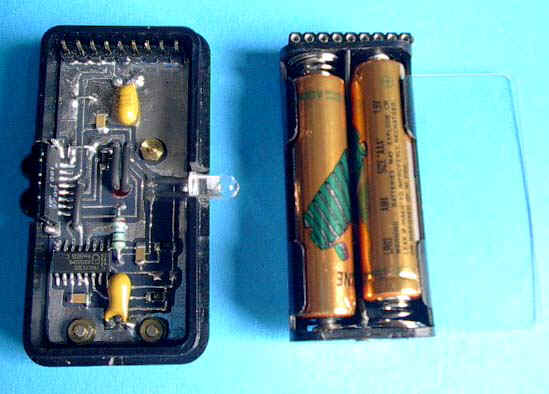

Battery Pack :
Battery Pack for two AAA batteries with 2 soldering contacts:


Battery :
2 pcs. of AAA alkaline batteries
