السلام عليكم ممكن احد يحول الكود الي MikroC بارك الله فيكم هو مشروع لقياس نبضات القلب

c code Hi-Tech C.
//# define
# include
#define  rs   RA2
#define  e   RA1
#define  lcd_data PORTB
#define _XTAL_FREQ 4000000
void delayms(unsigned int itime);
void pulse(void);
void send_char(unsigned char data);
void lcd_goto(unsigned char data);
void lcd_clr(void);
void send_string(const char *s);
void init_lcd(void);
void dis_num(unsigned int data,unsigned char digit);
void prog1(void);
unsigned long no=0;
void main (void)
{
 TRISA=0;
 TRISB=0;
 TRISA3=1;
 init_lcd();
delayms(10);
lcd_clr();
delayms(10);
send_string(“Heart rate meter”);
delayms(1000);
lcd_clr();
delayms(10);
 while(1)
 {
 prog1();
 }
}
void prog1(void)
{
 unsigned int temp1=0,temp2=0;
 unsigned char i;
 unsigned int hb=1;
  while(RA3);
  while(!RA3){
  hb++;
  delayms(1);
  }
 hb=30000/hb;
 lcd_goto(2);
 send_string(“H.B.R:    bpm”);
 lcd_goto(8);
 dis_num(hb,3);
}
void delayms(unsigned int itime)
{
 unsigned int i;
for(;itime>0;itime–)
{
__delay_ms(1);
}
}
void send_config(unsigned char data) //send lcd configuration
{
 rs=0;        //set lcd to configuration mode
lcd_data=data&0xf0;     //lcd data port = data
 pulse();
 lcd_data=(data<<4)&0xf0;
 pulse();
}
void pulse(void)
{
 e=1;        //pulse e to confirm the data
 delayms(1);
 e=0;
 delayms(1);
}
void lcd_goto(unsigned char data)  //set the location of the lcd cursor
{          //if the given value is (0-15) the
     send_config(0×80+data);   //cursor will be at the lower line
}
void lcd_clr(void)      //clear the lcd
{
send_config(0×01);
 delayms(2);
}
void send_string(const char *s)   //send a string to display in the lcd
{
rs = 1;
while (*s)send_char (*s++);
}
void send_char(unsigned char data)  //send lcd character
{
rs =1;
delayms(1);        //set lcd to display mode
 lcd_data=data&0xf0;     //lcd data port = data
 pulse();
 lcd_data=(data<<4)&0xf0;
 pulse();
}
void init_lcd(void)
{
 rs=0;e=0;        //command mode
 delayms(10);      //delay 10ms
 lcd_data=0×30;      //load initial nibble
 pulse();       //Latch initial code
 delayms(5);       //delay 5ms
 pulse();       //Latch initial code
 delayms(1);       //delay 1ms
 pulse();       //Latch initial code
 lcd_data=0×20;
 pulse();       //Latch initial code
 //configure lcd
 send_config(0×28);     //Set 4-bit mode, 2 lines
 send_config(0xF);     //Switch off display
  send_config(0×06);     //Enable cursor auto increase
}
void dis_num(unsigned int data,unsigned char digit)
{
 if(digit>3)
 send_char(’0′+(data/1000)%10);
 if(digit>2)
 send_char(’0′+(data/100)%10);
 if(digit>1)
 send_char(’0′+(data/10)%10);
 if(digit>0)
 send_char(’0′+(data/1)%10);
}

[ennng]

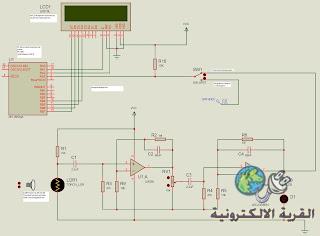

هذه الدائرة والمتحكم هو pic16f84
