اقتباس:
المشاركة الأصلية كتبت بواسطة MAGDY1236619
ارجو استخراج الكود من هذا الدامب
PHILIPS -MADE IN GERMANY
GAMMA .3 357 036 186G
 |
You wrong.

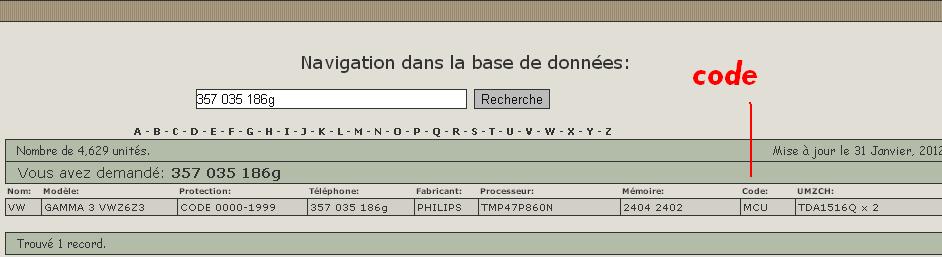

Real problem on this radio is that CODE is not in dump of eeproms.
Code is in MCU, you can't read is, so you need to make code research interface and use this program.
There is other way to decode this radio.
It is funny way, but BELIEVE ME, before years I made much radios in that way.
It will work OK until you disconect power suply. After that you have to do procedure again :-(
So. How it is:
1.Connect power suply.
2.start radio - on display "SAFE"
3.find battery 1.5V
4 connect + battery to cng of radio.
5. gnd of battery make quick tounch to oscilator of MCU
you can make 2-3 quick tuchest per second.
6. If radio stop shows something then disconect pover and then again begin from step.1
This radio can be done about 10-20 seconds.
Good luck
GAMMA .3 PHILIPS
