كود الاستقبال :
;************************************************* ******* ; ; Remote Controller Receiver ; ; Author : Seiichi Inoue ;************************************************* ******* list p=pic16f84a include p16f84a.inc __config _hs_osc & _wdt_off & _pwrte_on & _cp_off errorlevel -302 ;Eliminate bank warning ;**************** Label Definition ******************** cblock h'0c' rx_status ;RX status save area rx_substatus ;RX substatus save area rx_edge ;Input edge check flag last_look ;Input last look flag code_ck ;Code check flag cont_data ;Control Data relay ;Relay ON counter w_save ;W reg save area s_save ;Status reg save area endc ptn1 equ b'11110000' ;Pattern 1 data ptn2 equ b'00001111' ;Pattern 2 data ra1 equ d'1' ;RA1 bit position rb5 equ d'5' ;RB5 bit position rb7 equ d'7' ;RB7 bit position ;**************** Program Start *********************** org 0 ;Reset Vector goto init org 4 ;Interrupt Vector goto int ;****************** Initial Process ******************* init bsf status,rp0 ;Change to Bank1 movlw b'00011111' ;RA4-0:IN mode movwf trisa ;Set TRISA reg movlw b'00000000' ;RB7-0:OUT mode movwf trisb ;Set TRISB reg movlw b'00000101' ;RBPU/TOCS/PSA=0,PS=101 movwf option_reg ;Set OPTION_REG bcf status,rp0 ;Change to Bank0 clrf portb ;RL1,RL2 OFF clrf rx_status ;Clear RX status clrf rx_substatus ;Clear RX substatus clrf rx_edge ;Clear Edge check flag incf last_look,f ;Set Last Look flag ON clrf code_ck ;Clear code check flag clrf cont_data ;Clear Control Data clrf relay ;Clear Relay ON counter movlw d'100' ;256-10000us/64us = 100 movwf tmr0 ;Set 10msec to TMR0 movlw h'a0' ;GIE=1,TOIE=1 movwf intcon ;Interruption enable ;*********** Initial Input check Process ************** edge_check btfss porta,ra1 ;Input signal ON ? goto check1 ;No. Signal OFF btfsc last_look,0 ;Last Look flag OFF ? goto edge_check ;No. Input NOT changed bcf intcon,gie ;Interruption disable incf code_ck,f ;Set code check flag ON incf last_look,f ;Set Last Look flag ON movlw d'178' ;256-5000us/64us = 178 movwf tmr0 ;Set 5msec to TMR0 bsf intcon,gie ;Interruption enable wait btfss rx_edge,0 ;Input edge check ? goto wait ;No. Wait interruption clrf rx_edge ;Clear edge check flag goto edge_check ;Jump to Input edge check check1 clrf last_look ;Set Last Look flag OFF goto edge_check ;Jump to Input edge check ;************ Timer Interruption Process ************** int movwf w_save ;Save W register movf status,w ;Read STATUS reg movwf s_save ;Save STATUS reg bcf status,rp0 ;Change to Bank0 bcf intcon,t0if ;Clear timer int flag movf relay,w ;Read Relay ON counter btfsc status,z ;Counter = 0 ? goto stchk0 ;Yes decfsz relay,f ;Counter - 1 = 0 ? goto stchk0 ;No clrf portb ;Relay OFF stchk0 movf code_ck,w ;Read code check flag btfsc status,z ;Flag ON ? goto int_end ;No. End of interruption movf rx_status,w ;Read RX status btfss status,z ;Status = 0 ? goto stchk1 ;No. Next ;*********** Preamble data check Process ************* movf rx_substatus,w ;Read RX substatus btfss status,z ;Substatus = 0 ? goto st00 ;No. Next goto st_on ;Input signal ON ? st00 movlw d'1' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 1 ? goto st01 ;No. goto st_off ;Input signal OFF ? st01 movlw d'2' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 2 ? goto st02 ;No. goto st_on ;Input signal ON ? st02 movlw d'3' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 3 ? goto st03 ;No. goto st_off ;Input signal OFF ? st03 movlw d'4' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 4 ? goto st04 ;No. goto st_on ;Input signal ON ? st04 movlw d'5' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 5 ? goto st05 ;No. goto st_off ;Input signal OFF ? st05 movlw d'6' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 6 ? goto st06 ;No. goto st_on ;Input signal ON ? st06 movlw d'7' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 7 ? goto st07 ;No. Substatus=8 goto st_on ;Input signal ON ? st07 btfsc porta,ra1 ;Input signal OFF ? goto illegal ;No. Jump to illegal clrf rx_substatus ;RX substatus = 0 incf rx_status,f ;RX status = 1 clrf cont_data ;Clear count data goto int_end ;End of interruption ;************************************************* ******* stchk1 movlw d'1' ;Set check data subwf rx_status,w ;RX status - check data btfss status,z ;RX status = 1 ? goto stchk2 ;No. Next ;************ Control data check Process ************** movf rx_substatus,w ;Read RX substatus btfss status,z ;Substatus = 0 ? goto st10 ;No. Next goto st_on ;Input signal ON ? st10 movlw d'1' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 1 ? goto st11 ;No. btfss porta,ra1 ;B0 = 1 ? goto stinc ;Jump to Substatus + 1 bsf cont_data,0 ;Set B0 = 1 goto stinc ;Jump to Substatus + 1 st11 movlw d'2' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 2 ? goto st12 ;No. goto st_off ;Input signal OFF ? st12 movlw d'3' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 3 ? goto st13 ;No. goto st_on ;Input signal ON ? st13 movlw d'4' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 4 ? goto st14 ;No. btfss porta,ra1 ;B1 = 1 ? goto stinc ;Jump to Substatus + 1 bsf cont_data,1 ;Set B1 = 1 goto stinc ;Jump to Substatus + 1 st14 movlw d'5' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 5 ? goto st15 ;No. goto st_off ;Input signal OFF ? st15 movlw d'6' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 6 ? goto st16 ;No. goto st_on ;Input signal ON ? st16 movlw d'7' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 7 ? goto st17 ;No. btfss porta,ra1 ;B2 = 1 ? goto stinc ;Jump to Substatus + 1 bsf cont_data,2 ;Set B2 = 1 goto stinc ;Jump to Substatus + 1 st17 movlw d'8' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 8 ? goto st18 ;No. goto st_off ;Input signal OFF ? st18 movlw d'9' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 9 ? goto st19 ;No. goto st_on ;Input signal ON ? st19 movlw d'10' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 10 ? goto st20 ;No. btfss porta,ra1 ;B3 = 1 ? goto stinc ;Jump to Substatus + 1 bsf cont_data,3 ;Set B3 = 1 goto stinc ;Jump to Substatus + 1 st20 movlw d'11' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 11 ? goto st21 ;No. goto st_off ;Input signal OFF ? st21 movlw d'12' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 12 ? goto st22 ;No. goto st_on ;Input signal ON ? st22 movlw d'13' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 13 ? goto st23 ;No. btfss porta,ra1 ;B4 = 1 ? goto stinc ;Jump to Substatus + 1 bsf cont_data,4 ;Set B4 = 1 goto stinc ;Jump to Substatus + 1 st23 movlw d'14' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 14 ? goto st24 ;No. goto st_off ;Input signal OFF ? st24 movlw d'15' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 15 ? goto st25 ;No. goto st_on ;Input signal ON ? st25 movlw d'16' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 16 ? goto st26 ;No. btfss porta,ra1 ;B5 = 1 ? goto stinc ;Jump to Substatus + 1 bsf cont_data,5 ;Set B5 = 1 goto stinc ;Jump to Substatus + 1 st26 movlw d'17' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 17 ? goto st27 ;No. goto st_off ;Input signal OFF ? st27 movlw d'18' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 18 ? goto st28 ;No. goto st_on ;Input signal ON ? st28 movlw d'19' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 19 ? goto st29 ;No. btfss porta,ra1 ;B6 = 1 ? goto stinc ;Jump to Substatus + 1 bsf cont_data,6 ;Set B6 = 1 goto stinc ;Jump to Substatus + 1 st29 movlw d'20' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 20 ? goto st30 ;No. goto st_off ;Input signal OFF ? st30 movlw d'21' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 21 ? goto st31 ;No. goto st_on ;Input signal ON ? st31 movlw d'22' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 22 ? goto st32 ;No. Substatus=23 btfss porta,ra1 ;B7 = 1 ? goto stinc ;Jump to Substatus + 1 bsf cont_data,7 ;Set B7 = 1 goto stinc ;Jump to Substatus + 1 st32 btfsc porta,ra1 ;Input signal OFF ? goto illegal ;No. Jump to illegal clrf rx_substatus ;RX substatus = 0 incf rx_status,f ;RX status = 2 goto int_end ;End of interruption st_on btfss porta,ra1 ;Input signal ON ? goto illegal ;No. Jump to illegal goto stinc ;Jump to Substatus + 1 st_off btfsc porta,ra1 ;Input signal OFF ? goto illegal ;No. Jump to illegal goto stinc ;Jump to Substatus + 1 ;************** End data check Process **************** stchk2 btfss porta,ra1 ;Input signal ON ? goto illegal ;No. Jump to illegal movlw d'2' ;Set check data subwf rx_substatus,w ;Substatus - check data btfss status,z ;Substatus = 2 ? goto stinc ;Jump to Substatus + 1 ;**************** Data check Process ****************** movf cont_data,w ;Read control data xorlw ptn1 ;Check Pattern1 btfss status,z ;Data = Pattern1 ? goto dtchk0 ;No. bcf portb,rb7 ;RL2 OFF bsf portb,rb5 ;RL1 ON goto dtchk1 ;Jump to ON counter set dtchk0 movf cont_data,w ;Read control data xorlw ptn2 ;Check Pattern2 btfss status,z ;Data = Pattern2 ? goto illegal ;No. Jump to illegal bcf portb,rb5 ;RL1 OFF bsf portb,rb7 ;RL2 ON dtchk1 movlw d'50' ;Set 500msec Relay ON movwf relay ;Save Relay ON counter ;***************** Illegal Process ******************** illegal incf rx_edge,f ;Edge check flag ON clrf rx_substatus ;RX substatus = 0 clrf rx_status ;RX status = 0 clrf code_ck ;Clear code check flag goto int_end ;End of interruption ;*********** Substatus Increment Process ************** stinc incf rx_substatus,f ;Substatus + 1 ;******** End of Timer Interruption Process *********** int_end movlw d'100' ;256-10000us/64us = 100 movwf tmr0 ;Set 10msec to TMR0 movf s_save,w ;Read saved STATUS reg movwf status ;Recover STATUS reg swapf w_save,f ;Read saved W register swapf w_save,w ;Recover W register retfie ;End of interruption ;************************************************* ******* ; END of Remote Controller Receiver ;************************************************* ******* end

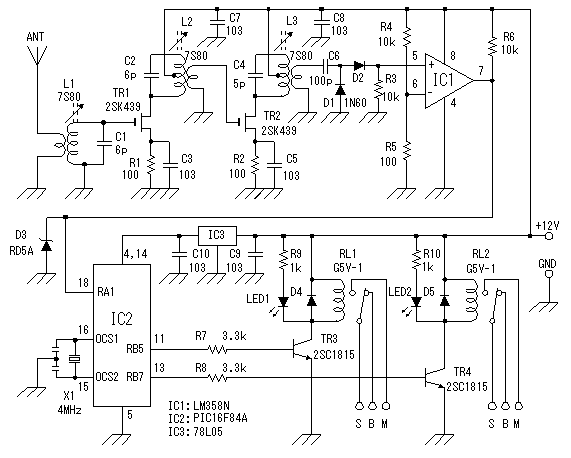

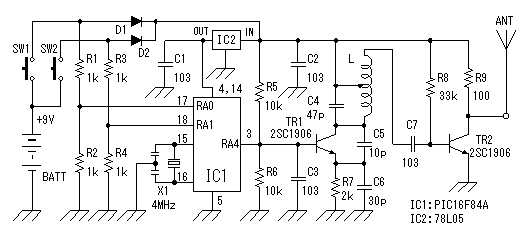

التحكم الاسلكي + دارة ارسال + اسقبال + كود + pic 16f84
كود الاستقبال :
آسف على الكود
